Concentric / Eccentric Reducer Manufacturer & Supplier in India

Concentric Reducer, Eccentric Reducer, Concentric - Eccentric Reducers, ANSI B16.9 Seamless Eccentric Reducer, Concentric Welded Reducer Manufacturer, Eccentric Butt-weld Reducer Supplier in India.

    Table of Content

    Concentric & Eccentric Reducer Information

    Concentric / Eccentric Reducer Types

    Specification of Concentric / Eccentric Reducer

    Dimension of Concentric / Eccentric Reducer

    Industry We Serve

    Concentric & Eccentric Reducer Information

    Concentric & Eccentric Reducer Types

    Specification of Concentric / Eccentric Reducers

    Dimension of Concentric / Eccentric Reducer

    Industry We Serve

    Seamless Concentric Reducer, Welded Eccentric Reducers, Concentric Eccentric Reducer, Concentric & Eccentric Reducers, Concentric Butt weld Reducers, Concentric and Eccentric Reducers Stockist in Mumbai, India.

    Stainless Steel Impex is leading manufacturers, traders, and stockholders of high-quality pipe fittings products like Concentric & Eccentric Reducer in different alloy types. All our reducers are manufactured by following national and international standards of making.

    Reducers are pipe fitting that can be available in different shapes, sizes, thicknesses, dimensions, designations, specifications, standards, grades, ranges, alloys, types, etc. The two major types of reducers are Concentric & Eccentric Reducer, and it is largely used in many industrial applications and equipment. Reducers are used when there is a need in the pipe system to reduce the size of the pipe from large bore to small bore- basically the inner diameter. In other words, reducers allow it to change the size of the pipe to meet the hydraulic flow needs of adapts or systems of the currently working pipe in variant sizes.

    Eccentric Seamless Reducer, Eccentric Reducer, Eccentric Reducer Manufacturers, Concentric Welded Reducer Manufacturer, Eccentric Butt Weld Reducer, Dimension of Concentric Reducer, Dimension of Eccentric Reducer, Concentric Industrial Reducer, Concentric & Eccentric Reducers Dealer in Mumbai, India.

    The Concentric & Eccentric Reducer is used for maintaining the bottom or top of the pipe level. The Concentric Reducer is also known by the name conical reducer because of the way it looks. In this reducer, the ends and centre are on the same axis and further maintained- the pipelines centerline elevations. It is mainly used when there is a need to maintain the smaller pipe and larger pipes centerline at the same level.

    On the other hand, the Eccentric Reducer is used when there is a requirement of maintaining the outer surface of one pipeline at the same level. It maintains the bottom of the pipe elevation of any pipeline. These two types of reducers exhibit higher mechanical and chemical properties when the right alloys make these pipe fittings. Plus, it possesses higher tensile strength, higher-yielding strength, higher toughness, corrosion resistance, abrasion resistance, reliability, durability; it is easy to weld, easy to fabricate, easy to install etc.

    Request the latest Concentric and Eccentric Reducer List. Please click on the request a quote button or click here to request the updated price list and ready stock information along with your requirement.

    Reducer Types

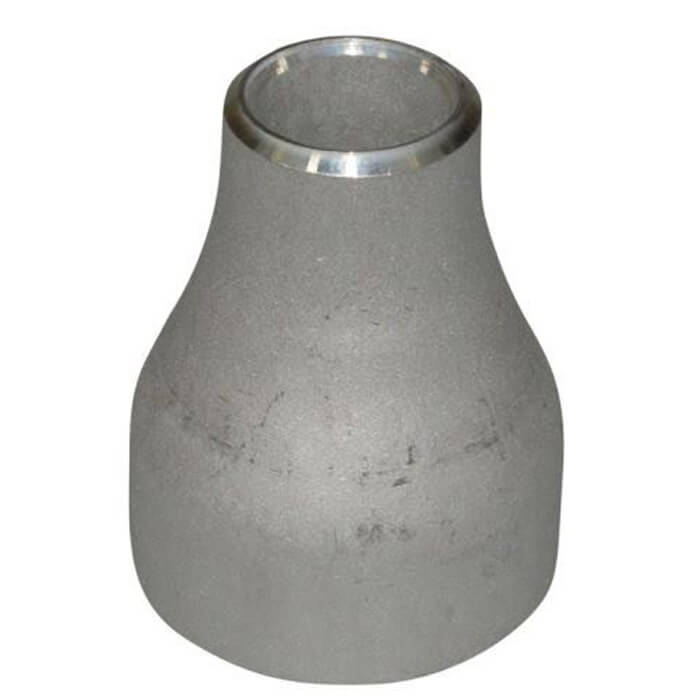

    Concentric Reducer

    Concentric Reducer

    Duplex Steel Concentric Reducer | Super Duplex Steel Concentric Reducer | Inconel Concentric Reducers Stockist | Incoloy Concentric Reducer | Hastelloy Concentric Reducers Manufacturer in India | Monel Concentric Reducer Supplier in Mumbai, India | Nickel Alloy Concentric Seamless Reducer | Titanium Concentric Welded Reducer | Cupro Nickel Concentric Butt Weld Reducer | Alloy 20 Concentric Reducers.

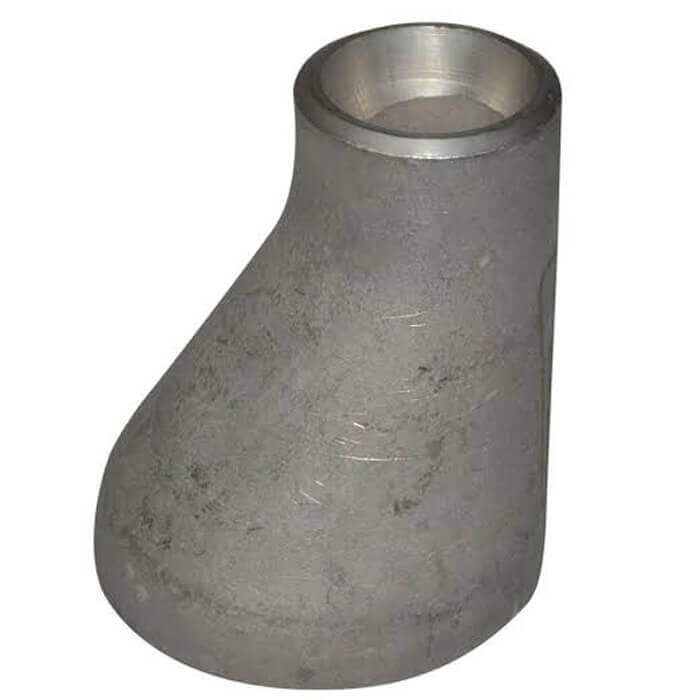

    Eccentric Reducer

    Eccentric Reducer

    Duplex Steel Eccentric Reducer | Super Duplex Steel Eccentric Reducer | Inconel Eccentric Reducer Stockist | Incoloy Eccentric Reducers | Hastelloy Eccentric Reducers Manufacturer in India | Monel Eccentric Reducer Supplier in Mumbai, India | Nickel Alloy Eccentric Seamless Reducer | Titanium Eccentric Welded Reducer | Cupro Nickel Eccentric Butt Weld Reducers | Alloy 20 Eccentric Reducers.

    Specification of Concentric / Eccentric Reducer

    Dimensions: ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 etc.

    Size: 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)

    Type: Seamless / Welded / Fabricated

    Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

    Thickness: Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

    Form: Reducer

    Dimension of Concentric / Eccentric Reducer


    Nominal Diameter    		 Outside Diameter
    End to End
    D1*D2
    DN NPS Series A Series B H
    20×15 3/4×1/2 26.9×21.3 25×18 38
    20×10 3/4×3/8 26.9×17.3 25×14 38
    25×20 1×3/4 33.7×26.9 32×25 51
    25×15 1×1/2 33.7×21.3 32×18 51
    32×25 1.1/4×1 42.4×33.7 38×32 51
    32×20 1.1/4×3/4 42.4×26.9 38×25 51
    32×15 1.1/4×1/2 42.4×21.3 38×18 51
    40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
    40×25 1.1/2×1 48.3×33.7 45×32 64
    40×20 1.1/2×3/4 48.3×26.9 45×25 64
    40×15 1.1/2×1/2 48.3×21.3 45×18 64
    50×40 2×1.1/2 60.3×48.3 57×45 76
    50×32 2×1.1/4 60.3×42.4 57×38 76
    50×25 2×1 60.3×33.7 57×32 76
    50×20 2×3/4 60.3×26.9 57×25 76
    65×50 2.1/2×2 73.0×60.3 76×57 89
    65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
    65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
    65×25 2.1/2×1 73.0×33.7 76×32 89
    80×65 3×2.1/2 88.9×73.0 89×76 89
    80×50 3×2 88.9×60.3 89×57 89
    80×40 3×1.1/2 88.9×48.3 89×45 89
    80×32 3×1.1/4 88.9×42.4 89×38 89
    90×80 3.1/2×3 101.6×88.9 - 102
    90×65 3.1/2×2.1/2 101.6×73.0 - 102
    90×50 3.1/2×2 101.6×60.3 - 102
    90×40 3.1/2×1.1/2 101.6×48.3 - 102
    90×32 3.1/2×1.1/4 101.6×42.4 - 102
    100×90 4×3.1/2 114.3×101.6 - 102
    100×80 4×3 114.3×88.9 108×89 102
    100×65 4×2.1/2 114.3×73.0 108×76 102
    100×50 4×2 114.3×60.3 108×57 102
    100×40 4×1.1/2 114.3×48.3 108×45 102
    125×100 5×4 141.3×114.3 133×108 127
    125×90 5×3.1/2 141.3×101.6 - 127
    125×80 5×3 141.3×88.9 133×89 127
    125×65 5×2.1/2 141.3×73.0 133×76 127
    125×50 5×2 141.3×60.3 133×57 127
    150×125 6×5 168.3×141.3 159×133 140
    150×100 6×5 168.3×114.3 159×108 140
    150×90 6×3.1/2 168.3×101.6 - 140
    150×80 6×3 168.3×88.9 159×89 140
    150×65 6×2.1/2 168.3×73.0 159×76 140
    200×150 8×6 219.1×168.3 219×159 152
    200×125 8×5 219.1×141.3 219×133 152
    200×100 8×4 219.1×114.3 219×108 152
    200×90 8×3.1/2 219.1×101.6 - 152
    250×200 10×8 273.0×219.1 273×219 178
    250×150 10×6 273.0×168.3 273×159 178
    250×125 10×5 273.0×141.3 273×133 178
    250×100 10×4 273.0×114.3 273×108 178
    300×250 12×10 323.9×273.1 325×273 203
    300×200 12×8 323.9×219.1 325×219 203
    300×150 12×6 323.9×168.3 325×159 203
    300×125 12×5 323.9×141.3 325×133 203
    350×300 14×12 355.6×323.9 377×325 330
    350×250 14×10 355.6×273.0 377×273 330
    350×200 14×8 355.6×219.1 377×219 330
    350×150 14×6 355.6×168.3 377×159 330
    400×350 16×14 406.4×355.6 426×377 356
    400×300 16×12 406.4×323.9 426×325 356
    400×250 16×10 406.4×273.0 426×273 356
    400×200 16×8 406.4×219.1 426×219 356
    450×400 18×16 457×406.4 478×426 381
    450×350 18×14 457×355.6 478×377 381
    450×300 18×12 457×323.9 478×325 381
    450×250 18×10 457×273.0 478×273 381
    500×450 20×18 508×457 529×478 508
    500×400 20×16 508×406.4 529×426 508
    500×350 20×14 508×355.6 529×377 508
    500×300 20×12 508×323.9 529×325 508
    550×500 22×20 559×508 - 508
    550×450 22×18 559×457 - 508
    550×400 22×16 559×406.4 - 508
    550×350 22×14 559×355.6 - 508
    600×550 24×22 610×559 - 508
    600×500 24×20 610×508 630×529 508
    600×450 24×18 610×457 630×478 508
    600×400 24×22 610×406.4 630×426 508
    650×600 26×24 660×610 - 610
    650×550 26×22 660×559 - 610
    650×500 26×20 660×508 - 610
    650×450 26×18 660×457 - 610
    700×650 28×26 711×660 - 610
    700×600 28×24 711×610 720×630 610
    700×550 28×22 711×559 - 610
    700×500 28×20 711×508 720×530 610
    750×700 30×28 762×711 - 610
    750×650 30×26 762×660 - 610
    750×600 30×24 762×610 - 610
    750×550 30×22 762×559 - 610
    800×750 32×30 813×762 - 610
    800×700 32×28 813×711 820×720 610
    800×650 32×26 813×660 - 610
    800×600 32×24 813×610 820×630 610
    850×800 34×32 864×813 - 610
    850×750 34×30 864×762 - 610
    850×700 34×28 864×711 - 610
    850×650 34×26 864×660 - 610
    900×850 36×34 914×864 - 610
    900×800 36×32 914×813 920×820 610
    900×750 36×30 914×762 - 610
    900×700 36×28 914×711 920×720 610
    950×900 38×36 965×914 - 610
    950×850 38×34 965×864 - 610
    950×800 38×32 965×813 - 610
    950×750 38×30 965×762 - 610
    1000×950 40×38 1016×965 - 610
    1000×900 40×36 1016×914 1020×920 610
    1000×850 40×34 1016×864 - 610
    1000×800 40×32 1016×813 1020×820 610
    1050×1000 42×40 1067×1016 - 610
    1050×950 42×38 1067×965 - 610
    1050×900 42×36 1067×914 - 610
    1050×850 42×34 1067×864 - 610
    1100×1050 44×42 1118×1067 - 610
    1100×1000 44×40 1118×1016 1120×1020 610
    1100×950 44×38 1118×965 - 610
    1100×900 44×36 1118×914 1220×920 610
    1150×1100 46×44 1168×1118 - 711
    1150×1050 46×42 1168×1067 - 711
    1150×1000 46×40 1168×1016 - 711
    1150×950 46×38 1168×965 - 711
    1200×1150 48×46 1220×1168 - 711
    1200×1100 48×44 1220×1118 1220×1120 711
    1200×1050 48×42 1220×1067 - 711
    1200×1000 48×40 1220×1016 1220×1020 711

    Industry We Serve

    Refinery and Petrochemical, Nuclear Power Station, Offshore Gas Field Expansion, Chemical Industry, Water Supply Systems, General Purpose, Food Processing Industry
